Description

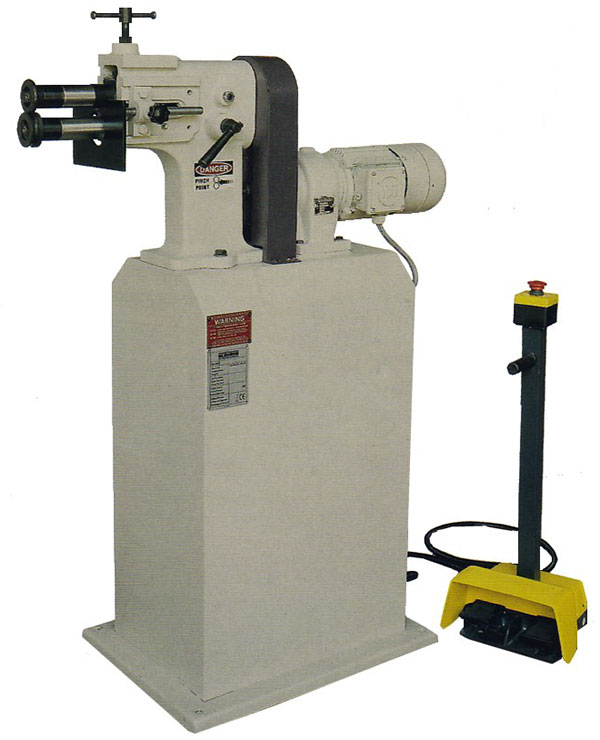

We are pleased to offer this excellent single speed machine, it has a cast iron heavy duty main frame with adjustable side supports. This machine is complete with stand, adjustable idle roll, reduction motor with brake system and with movement by foot pedal. Electrics 415v, 3phase, 50 hz. Built to EC safety directives. Amongst the standard equipment are 8 sets of standard wheels.
Only a few items available, if you need any further information please do not hesitate to contact us.
Price
£2250
All prices are subject to carriage and VAT.
Specifications
| Capacity—mild steel | 1.2mm |
| Throat depth | 100mm |
| Shaft length | 140mm |
| Motor rotation - Single speed | 32 rpm |
| Motor power | 0.75 kw |
| Dimensions L x W x H | 900 x 450 x 1350 mm |
| Weight | 135 kgs |
