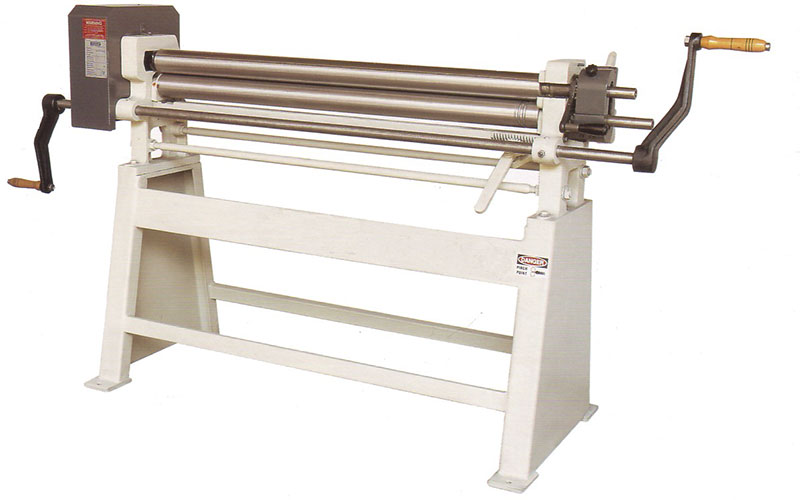

CMZ Manual (Top Slip) Initial Pinch Assymetrical bending Roll - CS2
Standard Range - Power Swaging Machine SPS Range - SPS 1.2CMZ Manual (Top Slip) Initial Pinch Assymetrical bending Roll - CS3
Description
We are pleased to offer our range of manual operated bending rolls. These rolls are rugged in structure and built to operate on maximum capacities and will provide consistent profiles in keeping with metalworkers expectations. Minimum diameters average out at 1.5 x top roll dia, though you will appreciate much depends on width and thickness of work part and of course the material ie., mild or stainless steel, aluminium etc.
Only a few items available, if you need any further information please do not hesitate to contact us.
Price
£1250
All prices are subject to carriage and VAT.
Features
- Rollers of SAE 1050 quality steel with high tensile strength
- Minimum diameters 1.5 x top roll dia.
- Wiring grooves standard in back and bottom rollers
- Built to EC safety requirements
- CE Marked
Specifications
| Work Length (mm) | 1050 |
| top Roll dia. (mm) | 68 |
| Capacity (mm) | 1.5 |
| Dimensions L x W x H (mm) | 1930 X 700 X 1100 |
| Weight (KGS) | 340 |
Additional Images
|
Standard Manual Drop End
|
|
Bending Sequence
|
